CR-PF-103
August 8, 2018
CR-PF-101
August 8, 2018

CR-PF-102

Bottom Patch

Specifications
Material Aluminium Graded Alloy with SS 304 cover of 0.8mm thickness.
Glass Thickness 10 - 12mm.
Finish Satin Stainless Steel.
  • Suitable for CREDA floor hinge or any other reputed manufacture.
  • Pivot point of 55 / 65mm.
  • High quality tempered precision screws are used to ensure solid griping.
  • With Gasket to prevent glass from damage.

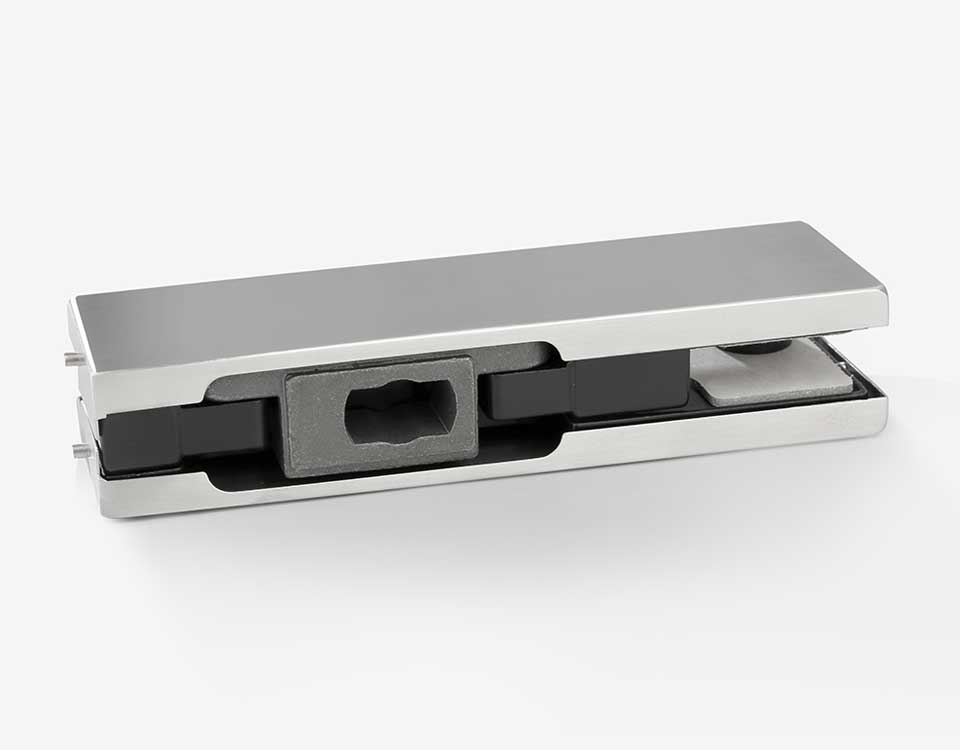

CR-PF-102-thumbnail

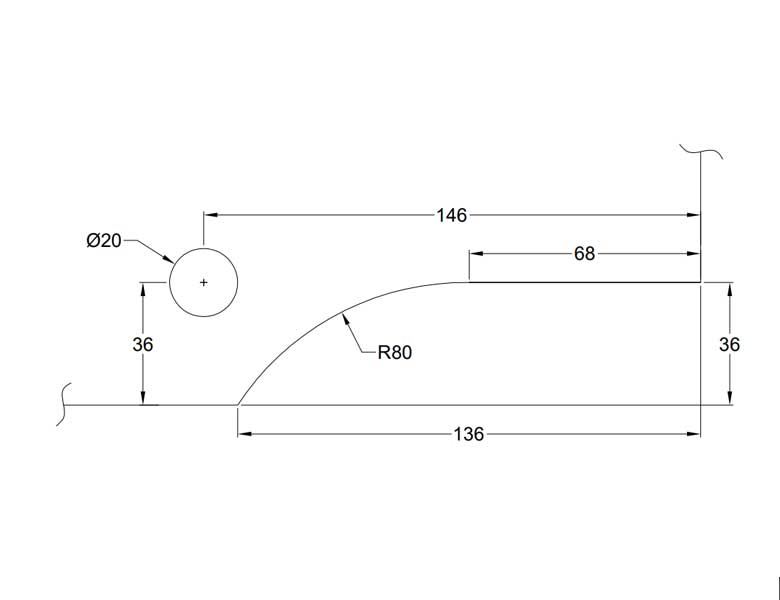

PF-102-Cutouts
